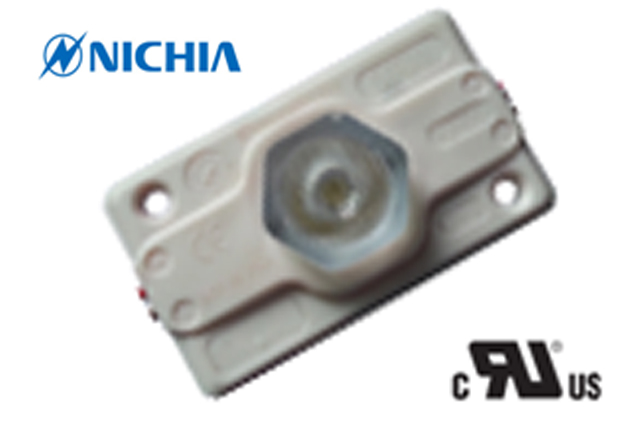

LED模組(1)

LED颜色 Item No.：F12P600W1L50-NC
LED 数量 LED type： NICHIA LED, 1.0Watt
LED颜色Emitting Color：White
線長 Wire length between modules：120mm±5%
光通亮Lumens& Luminosity：120-130
功率Wattage：1.6W
角度Beam Angle：56°*12°
產品的品牌应用尺寸Dimension of module & Application：Powered by 日本日亚
50×30×15（mm）， 1 Watt led inside, installed at the edges of sign box , IP65, 35000 Hours Cuttable each 1 pieces

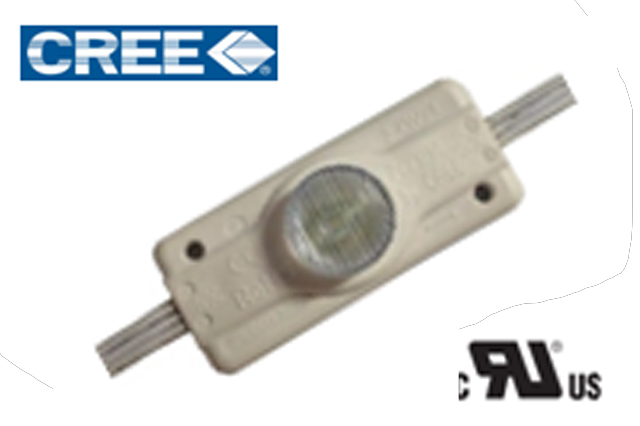

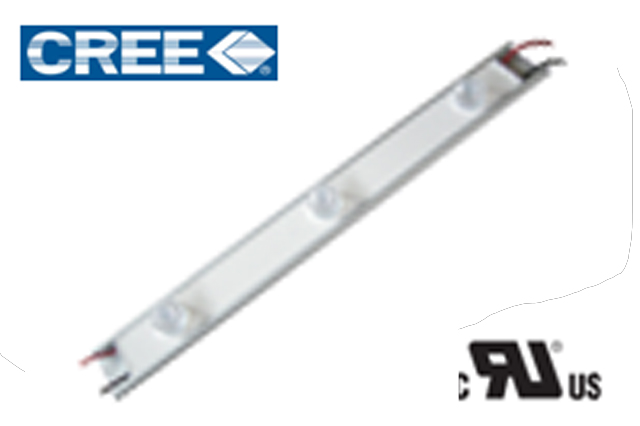

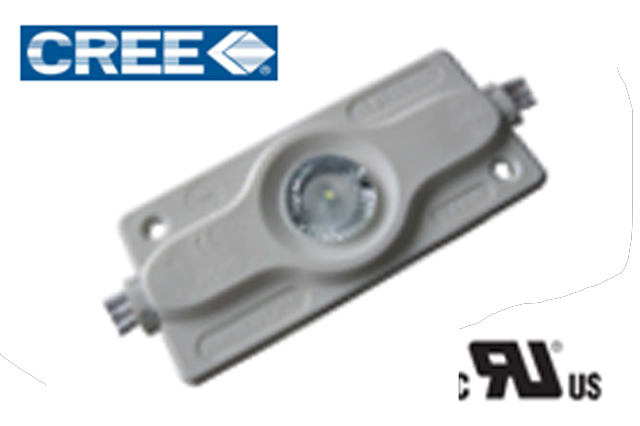

LED模組(2)

LED颜色 Item No.：F12P600W1L70-CR
LED 数量 LED type： Cree LED, 3.0Watt
LED颜色Emitting Color：White
線長 Wire length between modules：180mm±5%
光通亮Lumens& Luminosity：200-220
功率Wattage：2.8W
角度Beam Angle：56°*12°
產品的品牌应用尺寸Dimension of module & Application：Powered by 美国科锐
70×30×15（mm）， 3 Watt led inside, installed at the edges of sign box , IP65, 35000 Hours Cuttable each 1 pieces

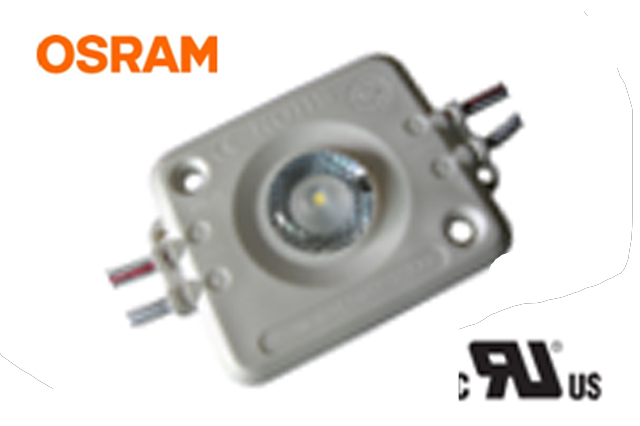

LED模組(3)

LED颜色 Item No.：F12P600W1L40-OS
LED 数量 LED type： OSRAM LED, 1.0Watt
LED颜色Emitting Color：White
線長 Wire length between modules：180mm±5%
光通亮Lumens& Luminosity：110~125
功率Wattage：1.6W
角度Beam Angle：160°
產品的品牌应用尺寸Dimension of module & Application：Powered by 德国欧司朗
40×35×3.5（mm），1.0Watt led inside, designed as backlights to lightbox with depth from 120 to 250mm, IP65,9 pcs per ㎡ is bright enough & light spreaded evenly .

LED模組(4)

LED颜色 Item No.：F12P600W1L65-CR
LED 数量 LED type：Cree LED, 3.0Watt
LED颜色Emitting Color：White
線長 Wire length between modules：180mm±5%
光通亮Lumens& Luminosity：200-220
功率Wattage：2.4W
角度Beam Angle：160°
產品的品牌应用尺寸Dimension of module & Application：Powered by 美国科锐
70×30×15（mm），1.0Watt led inside, designed as backlights to lightbox with depth from 120 to 250mm, IP65,9 pcs per ㎡ is bright enough & light spreaded evenly .

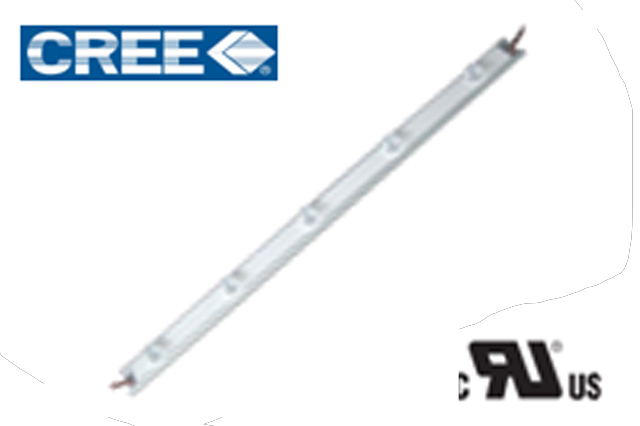

LED模組(5)

LED颜色 Item No.：F12P700W3L-CR
LED 数量 LED type：Cree LED, 3.0Watt
LED颜色Emitting Color：White
線長 Wire length between modules：100mm±5%
光通亮Lumens& Luminosity：660 Lm
功率Wattage：9.0W
角度Beam Angle：56°*12°
產品的品牌应用尺寸Dimension of module & Application：Powered by 美国科锐
high power led inside, designed for light box (double-side illuminated) whose depth is: 120mm~350mm. Lights emits from the edges of box.

LED模組(6)

LED颜色 Item No.：F12P700W5L-CR
LED 数量 LED type：Cree LED, 3.0Watt
LED颜色Emitting Color：White
線長 Wire length between modules：100mm±5%
光通亮Lumens& Luminosity：1100 Lm
功率Wattage：15.0W
角度Beam Angle：56°*12°
產品的品牌应用尺寸Dimension of module & Application：Powered by 美国科锐
high power led inside, designed for light box (double-side illuminated) whose depth is: 120mm~350mm. Lights emits from the edges of box.

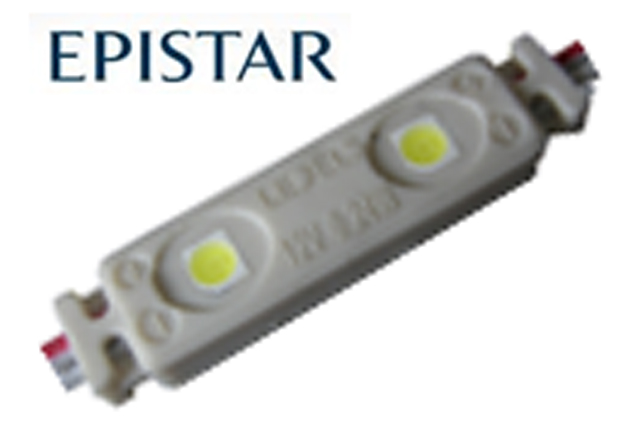

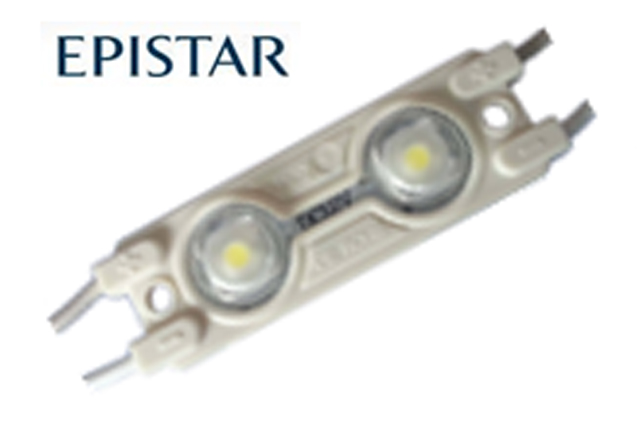

LED模組(7)

LED颜色 Item No.：Z12T4015W2-EP
LED 数量 LED type：EPISTAR led, 0.2Watt/ led (SMD 5050LED)
LED颜色Emitting Color：White
線長 Wire length between modules：100mm±5%
光通亮Lumens& Luminosity：44~48
功率Wattage：0.48Watt
角度Beam Angle：150°
產品的品牌应用尺寸Dimension of module & Application：Powered by 台湾亿光60mm×15mm×5.5mm designed for internal illumination of signs whose depth is: 40mm~60mm

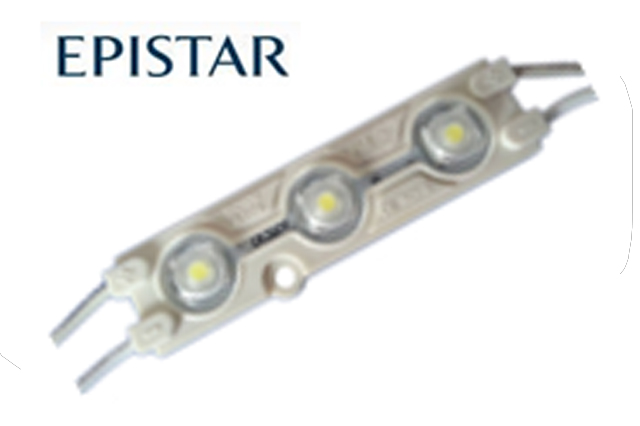

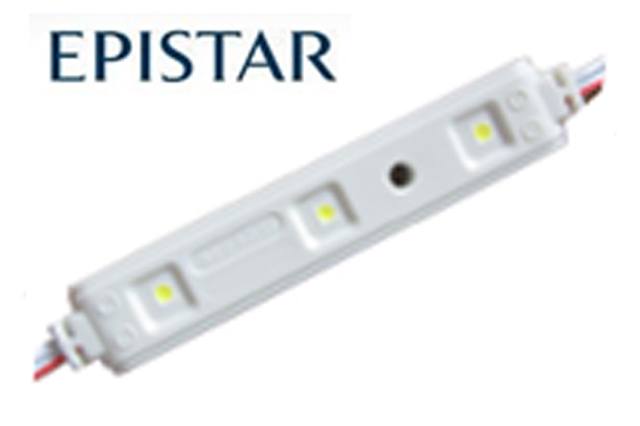

LED模組(8)

LED颜色 Item No.：Z12T6015W3-EP
LED 数量 LED type：EPISTAR led, 0.2Watt/ led (SMD 5050LED)
LED颜色Emitting Color：White
線長 Wire length between modules：100mm±5%
光通亮Lumens& Luminosity：66~72
功率Wattage：0.72Watt
角度Beam Angle：150°
產品的品牌应用尺寸Dimension of module & Application：Powered by 台湾亿光
60mm×15mm×5.5mm designed for internal illumination of signs whose depth is: 40mm~60mm

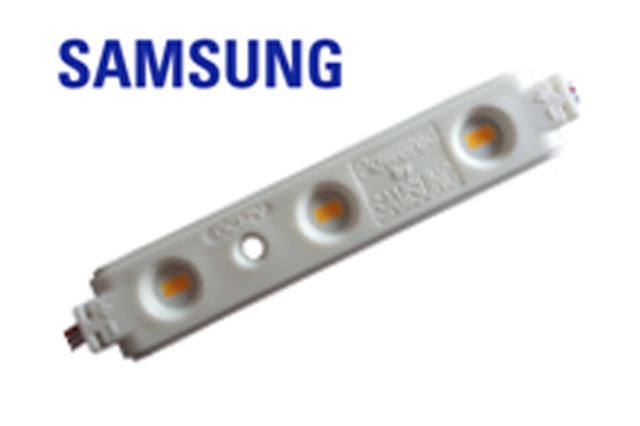

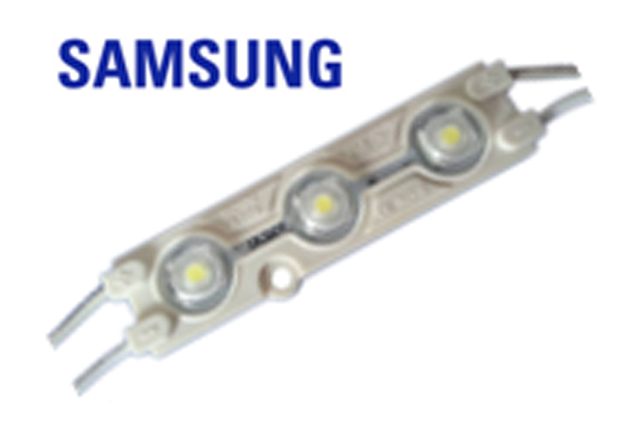

LED模組(9)

LED颜色 Item No.：Z12T6615W3-SM
LED 数量 LED type：Samsung led, 0.5Watt/ led (SMD 5630LED)
LED颜色Emitting Color：White
線長 Wire length between modules：100mm±5%
光通亮Lumens& Luminosity：120~135
功率Wattage：1.2Watt
角度Beam Angle：150°
產品的品牌应用尺寸Dimension of module & Application：Powered by 韩国三星SAMSUNG
68mm×15mm×5.5mm designed for internal illumination of signs whose depth is: 80mm~150mm

LED模組(10)

LED颜色 Item No.：Z12T6615W3-SM
LED 数量 LED type：Samsung led, 0.5Watt/ led (SMD 5630LED)
LED颜色Emitting Color：White
線長 Wire length between modules：100mm±5%
光通亮Lumens& Luminosity：70~80
功率Wattage：0.96Watt
角度Beam Angle：150°
產品的品牌应用尺寸Dimension of module & Application：Powered by 韩国三星SAMSUNG
40mm×15mm×5.5mm designed for internal illumination of signs whose depth is: 80mm~150mm

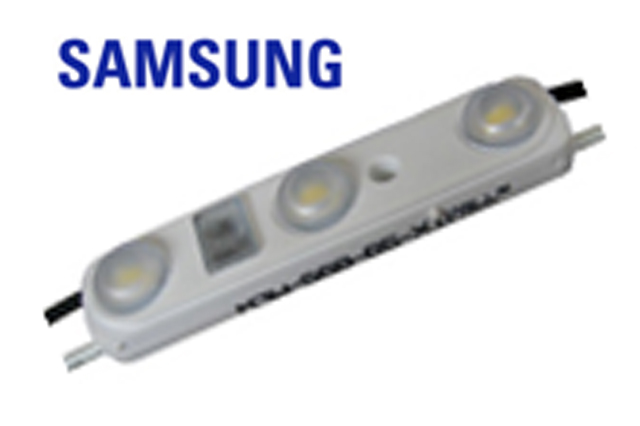

LED模組(11)

LED颜色 Item No.：Z12T6015W3-SM
LED 数量 LED type：Samsung led, 0.5Watt/ led (SMD 5630LED)
LED颜色Emitting Color：White
線長 Wire length between modules：100mm±5%
光通亮Lumens& Luminosity：120~135
功率Wattage：1.2Watt
角度Beam Angle：150°
產品的品牌应用尺寸Dimension of module & Application：Powered by 韩国三星SAMSUNG
60mm×15mm×5.5mm designed for internal illumination of signs whose depth is: 80mm~150mm

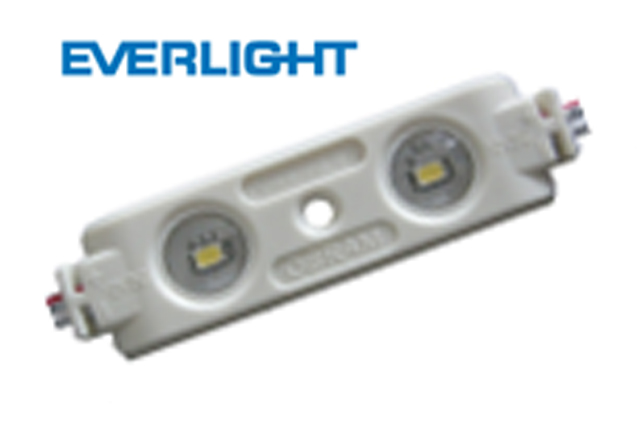

LED模組(12)

LED颜色 Item No.：Z12T4815W2-EV
LED 数量 LED type：Everlight led, 0.2Watt/ led (SMD2835)
LED颜色Emitting Color：White
線長 Wire length between modules：100mm±5%
光通亮Lumens& Luminosity：44~48
功率Wattage：0.6Watt
角度Beam Angle：120°
產品的品牌应用尺寸Dimension of module & Application：Powered by台湾亿光
48mm×15mm×5.5mm designed for internal illumination of outdoor channel letters & lightbox whose depth is: 80mm~150mm

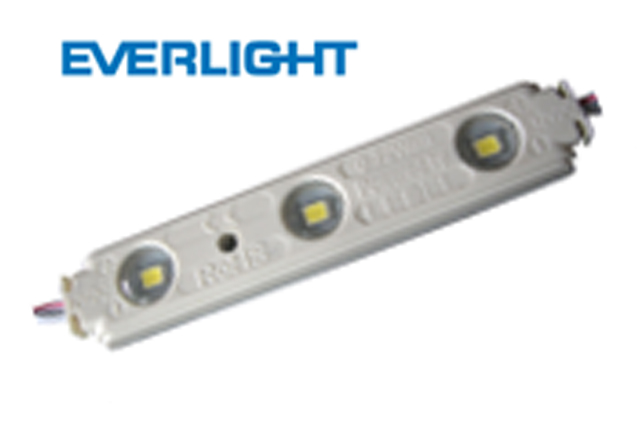

LED模組(13)

LED颜色 Item No.：Z12T7815W3-EV
LED 数量 LED type：Everlight led, 0.2Watt/ led (SMD2835)
LED颜色Emitting Color：White
線長 Wire length between modules：100mm±5%
光通亮Lumens& Luminosity：66~72
功率Wattage：0.72Watt
角度Beam Angle：120°
產品的品牌应用尺寸Dimension of module & Application：Powered by台湾亿光
78mm×15mm×5.5mm designed for internal illumination of outdoor channel letters & lightbox whose depth is: 80mm~150mm

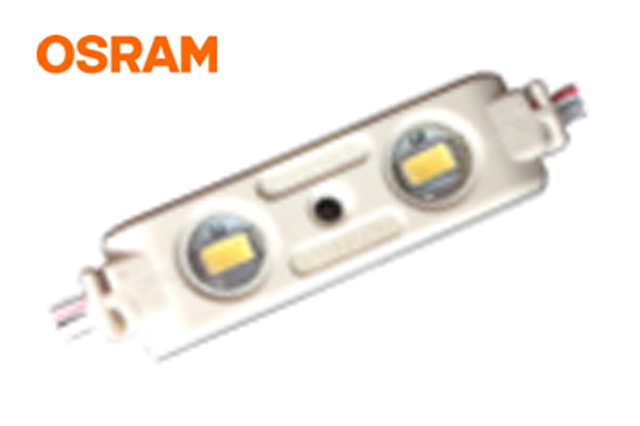

LED模組(14)

LED颜色 Item No.：Z12T4815W2-OS
LED 数量 LED type：Osram SMD5630 0.5watt
LED颜色Emitting Color：White
線長 Wire length between modules：100mm±5%
光通亮Lumens& Luminosity：70~80
功率Wattage：0.96Watt
角度Beam Angle：120°
產品的品牌应用尺寸Dimension of module & Application：Powered by 德国欧司朗
48mm×15mm×5.5mm， IP65，designed for internal illumination of outdoor channel letters & lightbox whose depth is: 100~150mm

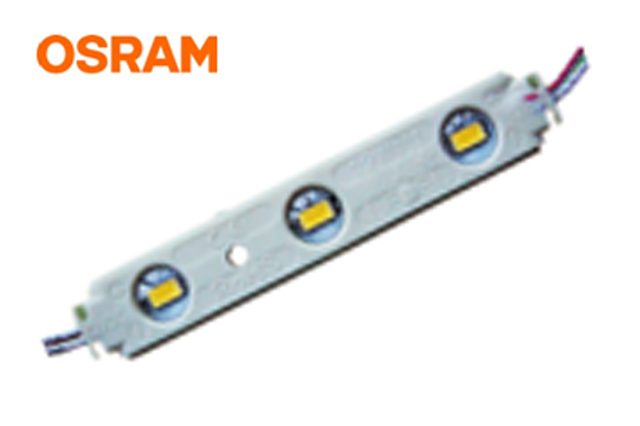

LED模組(15)

LED颜色 Item No.：Z12T7815W3-OS
LED 数量 LED type：Osram SMD5630 0.5watt
LED颜色Emitting Color：White
線長 Wire length between modules：150mm±5%
光通亮Lumens& Luminosity：120~135
功率Wattage：1.2Watt
角度Beam Angle：120°
產品的品牌应用尺寸Dimension of module & Application：Powered by 德国欧司朗
78mm×15mm×5.5mm， IP65，designed for internal illumination of outdoor channel letters & lightbox whose depth is: 100~150mm

LED模組(16)

LED颜色 Item No.：Z12T2807W2-EP
LED 数量 LED type：EPISTAR led, 0.06Watt/ led (SMD3528)
LED颜色Emitting Color：White
線長 Wire length between modules：60mm±5%
光通亮Lumens& Luminosity：24~27
功率Wattage：0.24Watt
角度Beam Angle：120°
產品的品牌应用尺寸Dimension of module & Application：Powered by 台湾亿光
36mm*7mm*5mm designed for internal illumination of outdoor channel letters whose depth is: 30mm~60mm

LED模組(17)

LED颜色 Item No.：Z12T3807W3-EP
LED 数量 LED type：EPISTAR led, 0.06Watt/ led (SMD3528)
LED颜色Emitting Color：White
線長 Wire length between modules：60mm±5%
光通亮Lumens& Luminosity：24~27
功率Wattage：0.24Watt
角度Beam Angle：120°
產品的品牌应用尺寸Dimension of module & Application：Powered by 台湾亿光
36mm*7mm*5mm designed for internal illumination of outdoor channel letters whose depth is: 30mm~60mm

LED模組(18)

LED颜色 Item No.：Z12T6612W3-EP
LED 数量 LED type：EPISTAR led, 0.06Watt/ led (SMD3528)
LED颜色Emitting Color：White
線長 Wire length between modules：100mm±5%
光通亮Lumens& Luminosity：24~27
功率Wattage：0.24Watt
角度Beam Angle：120°
產品的品牌应用尺寸Dimension of module & Application：Powered by 台湾亿光
66mm×12mm×7.5mm designed for internal illumination of outdoor channel letters whose depth is: 80mm~100mm

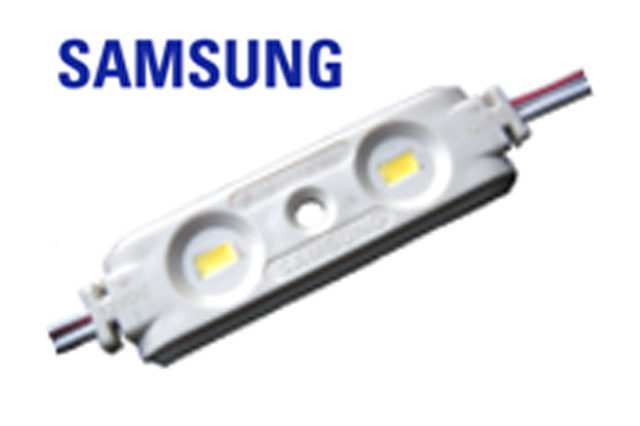

LED模組(19)

LED颜色 Item No.：Z12T4815W2-SM
LED 数量 LED type：Samsung led, 0.5Watt/ led (SMD 5630LED)
LED颜色Emitting Color：White
線長 Wire length between modules：100mm±5%
光通亮Lumens& Luminosity：70~80
功率Wattage：0.96Watt
角度Beam Angle：120°
產品的品牌应用尺寸Dimension of module & Application：Powered by 韩国三星
48mm×15mm×5.5mm， IP64，designed for internal illumination of outdoor channel letters & lightbox whose depth is: 100~150mm

LED模組(20)

LED颜色 Item No.：Z12T7815W3-SM
LED 数量 LED type：Samsung led, 0.5Watt/ led (SMD 5630LED)
LED颜色Emitting Color：White
線長 Wire length between modules：150mm±5%
光通亮Lumens& Luminosity：120~135
功率Wattage：1.2Watt
角度Beam Angle：120°
產品的品牌应用尺寸Dimension of module & Application：Powered by韩国三星
78mm×15mm×5.5mm， IP64，designed for internal illumination of outdoor channel letters & lightbox whose depth is: 100~150mm

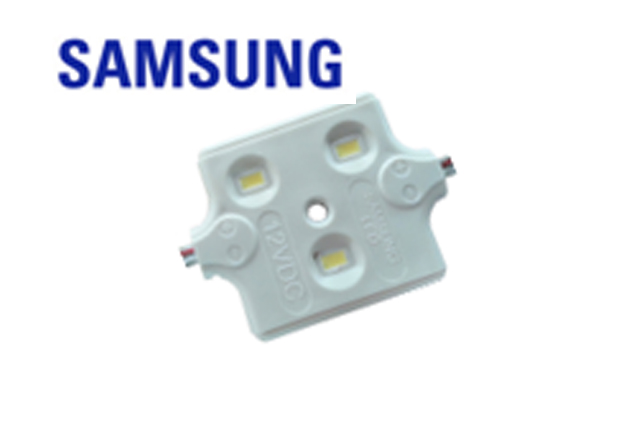

LED模組(21)

LED颜色 Item No.：Z12T7815W3-SM
LED 数量 LED type：Samsung led, 0.5Watt/ led (SMD 5630LED)
LED颜色Emitting Color：White
線長 Wire length between modules：150mm±5%
光通亮Lumens& Luminosity：120~135
功率Wattage：1.2Watt
角度Beam Angle：120°
產品的品牌应用尺寸Dimension of module & Application：Powered by 韩国三星
35mm×35mm×5.5mm， IP64，designed for internal illumination of outdoor channel letters & lightbox whose depth is: 100~150mm
